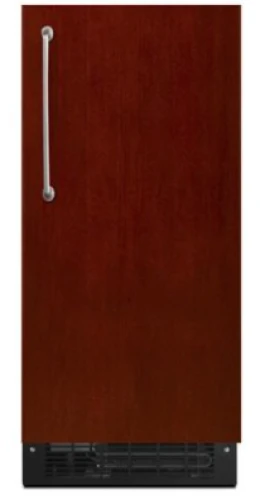

Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
Specification
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | No |
| Certifications|CEE Tier | Not Rated |
| Certifications|Energy Star® Qualified | No |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Configuration|Refrigeration Configuration | Ice Maker |
| Controls|Control Location | Interior Up Front |
| Controls|Control Type | Electronic Touch |
| Controls|Defrost Type | Automatic Defrost |
| Controls|Ice Maker On/Off | Yes |
| Controls|Water Filter Indicator/Reset | Yes |
| Details|Ambient Temperature Range | 55F to 110F |
| Details|Drain Connection | Rear Access 5/8in. OD |
| Details|Drain Pump | Pump Included |
| Details|Ice Capacity Storage (lbs) | 25.0 |
| Details|Interior Light | LED |
| Details|Interior Liner Finish | Plastic |
| Details|Liner Color | White |
| Details|Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Details|Style | Ice Makers |
| Details|Water Inlet Connection | 1/4in. OD PEX Tubing |
| Details|Water Supply Pressure (PSI) | 30 – 120 psi |

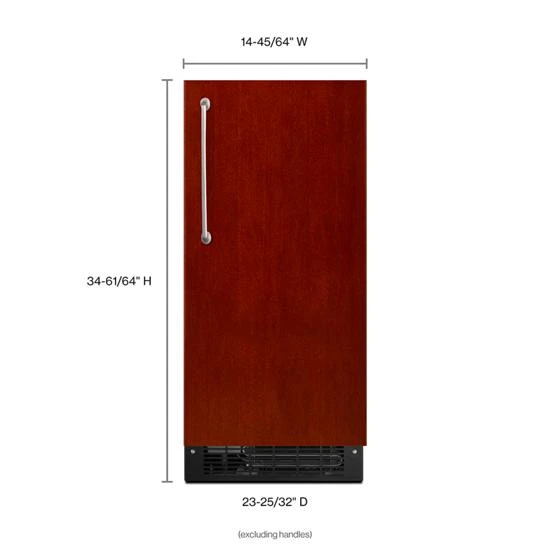

| Cabinet Width (in) | 14 7/8 inch |
| Carton Depth | 28 3/8 inch |
| Carton Height | 36 1/8 inch |
| Carton Width | 17 1/4 inch |
| Cutout Depth (in) | 25 inch |
| Cutout Height (in) | 34 1/2 inch |
| Cutout Width (in) | 15 inch |
| Depth | 26 1/16 inch |
| Depth Closed Excluding Handles | 24 5/8 inch |
| Depth Closed Including Handles | 26 1/16 inch |
| Depth Excluding Doors | 22 1/8 inch |
| Depth With Door Open 90 Degree | 39 1/2 inch |
| Gross Weight | 107 inch |
| Height To Top Of Cabinet | 33 5/8 inch |
| Height To Top Of Door Hinge | 34 1/16 inch |
| Net Weight | 96.5 inch |
| Dimensions|Cabinet Width (IN,inches) | 14.8750 |
| Dimensions|Carton Depth(IN,inches) | 28.3750 |
| Dimensions|Carton Height(IN,inches) | 36.1250 |
| Dimensions|Carton Width(IN,inches) | 17.2500 |
| Dimensions|Cutout Depth(IN,inches) | 25.0000 |
| Dimensions|Cutout Height(IN,inches) | 34.5000 |
| Dimensions|Cutout Width(IN,inches) | 15.0000 |
| Dimensions|Depth Closed Excluding Handles(IN,inches) | 24.6250 |
| Dimensions|Depth Closed Including Handles(IN,inches) | 26.0625 |
| Dimensions|Depth Excluding Doors(IN,inches) | 22.0625 |
| Dimensions|Depth With Door Open 90 Degree(IN,inches) | 39.5625 |
| Dimensions|Gross Weight(LB,pounds) | 107 |
| Dimensions|Height To Top Of Cabinet(IN,inches) | 33.6250 |
| Dimensions|Height To Top Of Door Hinge(IN,inches) | 34.0625 |
| Dimensions|Net Weight(LB,pounds) | 96 |
| Electrical|Amps | 15 or 20 |
| Electrical|Volts | 115/120 |
| Exterior|Cabinet Finish | Textured |
| Exterior|Cabinet Material | Prepainted Steel |
| Exterior|Door Opening | Right |
| Exterior|Reversible Door | Yes |
| Filters|Water Filter Location | Interior |
| Filters|Water Filter Part Number | F2WC9I1 |
| Ice Maker Features|Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
