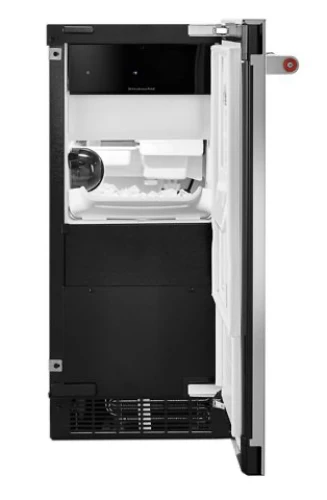

This 15″ automatic ice maker uses Clear Ice Technology to help produce cubes of uniform shape and clarity for every occasion. Distinctive styling makes it an appealing complement to other KitchenAid® appliances, with Fully Flush Installation for a built-in look. The signature handle design opens the door to reveal a storage bin that holds up to 25 pounds of ice.
Specification
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | No |
| Certifications|CEE Tier | Not Rated |
| Certifications|Energy Star® Qualified | No |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Configuration|Refrigeration Configuration | Ice Maker |
| Controls|Control Location | Interior Up Front |
| Controls|Control Type | Electronic Touch |
| Controls|Defrost Type | Automatic Defrost |
| Controls|Ice Maker On/Off | Yes |
| Controls|Water Filter Indicator/Reset | Yes |
| Details|Ambient Temperature Range | 55F to 110F |
| Details|Drain Connection | Rear Access 5/8in. OD |
| Details|Drain Pump | Pump Included |
| Details|Ice Capacity Storage (lbs) | 25.0 |
| Details|Interior Light | LED |
| Details|Interior Liner Finish | Plastic |
| Details|Liner Color | White |
| Details|Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Details|Style | Ice Makers |
| Details|Water Inlet Connection | 1/4in. OD PEX Tubing |
| Details|Water Supply Pressure (PSI) | 30 – 120 psi |

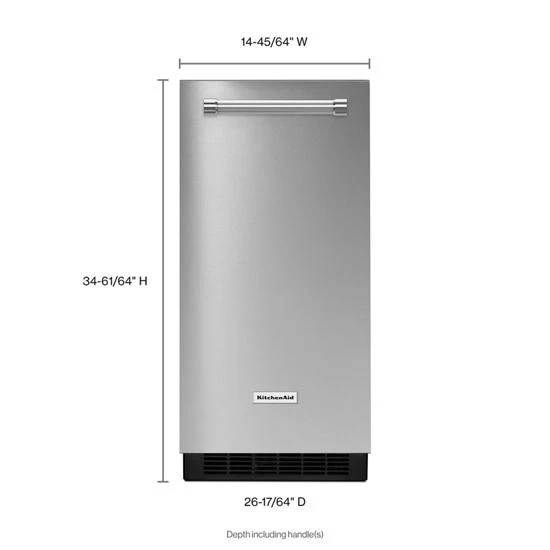

| Cabinet Width (in) | 14 7/8 inch |
| Carton Depth | 28 3/8 inch |
| Carton Height | 36 1/8 inch |
| Carton Width | 17 1/4 inch |
| Cutout Depth (in) | 25 inch |
| Cutout Height (in) | 34 1/2 inch |
| Cutout Width (in) | 15 inch |
| Depth | 26 1/16 inch |
| Depth Closed Excluding Handles | 24 5/8 inch |
| Depth Closed Including Handles | 26 1/16 inch |
| Depth Excluding Doors | 22 1/16 inch |
| Depth With Door Open 90 Degree | 39 9/16 inch |
| Gross Weight | 107 inch |
| Height To Top Of Cabinet | 33 5/8 inch |
| Height To Top Of Door Hinge | 34 1/16 inch |
| Net Weight | 96.5 inch |
| Dimensions|Cabinet Width (IN,inches) | 14.8750 |
| Dimensions|Carton Depth(IN,inches) | 28.3750 |
| Dimensions|Carton Height(IN,inches) | 36.1250 |
| Dimensions|Carton Width(IN,inches) | 17.2500 |
| Dimensions|Cutout Depth(IN,inches) | 25.0000 |
| Dimensions|Cutout Height(IN,inches) | 34.5000 |
| Dimensions|Cutout Width(IN,inches) | 15.0000 |
| Dimensions|Depth Closed Excluding Handles(IN,inches) | 24.0000 |
| Dimensions|Depth Closed Including Handles(IN,inches) | 25.3750 |
| Dimensions|Depth Excluding Doors(IN,inches) | 22.1250 |
| Dimensions|Depth With Door Open 90 Degree(IN,inches) | 39.5000 |
| Dimensions|Gross Weight(LB,pounds) | 107 |
| Dimensions|Height To Top Of Cabinet(IN,inches) | 33.6250 |
| Dimensions|Height To Top Of Door Hinge(IN,inches) | 34.0625 |
| Dimensions|Net Weight(LB,pounds) | 96 |
| Electrical|Amps | 15 or 20 |
| Electrical|Volts | 115/120 |
| Exterior|Cabinet Finish | Textured |
| Exterior|Cabinet Material | Prepainted Steel |
| Exterior|Door Opening | Right |
| Exterior|Handle Color | Stainless Steel |
| Exterior|Handle Location | Horizontal |
| Exterior|Handle Material | Metal |
| Exterior|Handle Type | Towel Bar |
| Exterior|Reversible Door | Yes |
| Filters|Water Filter Location | Interior |
| Filters|Water Filter Part Number | F2WC9I1 |
| Ice Maker Features|Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
