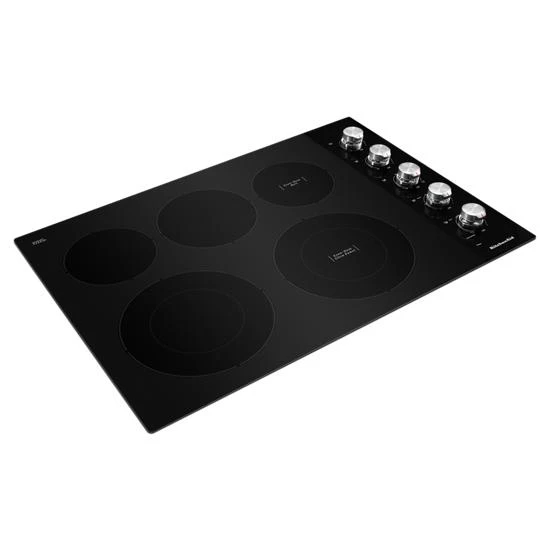

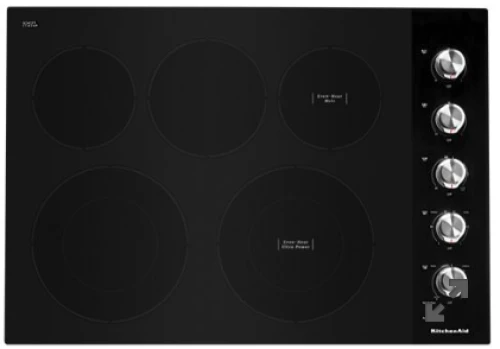

This 30″ electric cooktop has performance that more than backs up its timeless style. Features include a 10” Even-Heat™ Ultra Power™ Element with Simmer Setting, a 6” Even-Heat™ Element with Melt Setting, and 10″/6″ Ultra Power™ Double-Ring Round Element designed to accommodate both large stock pots and six-inch sauté pans with ease and handle rapid boiling, searing and wok cooking.
Specification
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | ADA Height and Operation Compliant |
| Certifications|Energy Rating (kWh/year) | 258 |
| Certifications|Prop 65 | Standard |
| Controls|Control Location | Right Side |
| Controls|Control Type | Knobs |
| Controls|Infinite Heat Controls | Yes |
| Controls|Knob Type | Metal |
| Cooktop Details|Center Rear Element-Burner Power | 1,800W |
| Cooktop Details|Center Rear Element-Burner Size | 8in. |
| Cooktop Details|Center Rear Element-Burner Type | Standard |
| Cooktop Details|Cooktop Configuration | All Burners |
| Cooktop Details|Cooktop Element Style | Radiant |
| Cooktop Details|Cooktop Surface Color | Black |
| Cooktop Details|Left Front Element-Burner Power | 3000W/1900W |
| Cooktop Details|Left Front Element-Burner Size | 10in./6in. |
| Cooktop Details|Left Front Element-Burner Type | Dual |
| Cooktop Details|Left Rear Element-Burner Power | 1,200W |
| Cooktop Details|Left Rear Element-Burner Size | 6in. |
| Cooktop Details|Left Rear Element-Burner Type | Standard |
| Cooktop Details|Number of Cooking Element-Burners | 5 |
| Cooktop Details|Number of Open Bays | N/A |
| Cooktop Details|Right Front Element-Burner Power | 3200/2300W |
| Cooktop Details|Right Front Element-Burner Size | 10in./6in. |
| Cooktop Details|Right Front Element-Burner Type | Dual |
| Cooktop Details|Right Rear Element-Burner Power | 1,300W |
| Cooktop Details|Right Rear Element-Burner Size | 6in. |
| Cooktop Details|Right Rear Element-Burner Type | Single |
| Description|Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
| Description|Cooktop Type | Standard |
| Description|Fuel Type | Electric |
| Description|Size (in.) | 30 |
| Details|Cooktop Surface Material | Glass |
| Carton Depth | 25 inch |
| Carton Height | 9 1/4 inch |
| Carton Width | 35 inch |
| Cutout Depth (in) | 20 3/8 inch |
| Cutout Width (in) | 29 1/16 inch |
| Depth | 21 3/4 inch |
| Height | 5 1/4 inch |
| Width | 30 13/16 inch |
| Gross Weight | 52 inch |
| Maximum Height | 5 1/4 inch |
| Net Weight | 47.0 inch |
| Dimensions|Carton Depth(IN,inches) | 25.0000 |
| Dimensions|Carton Height(IN,inches) | 9.2500 |
| Dimensions|Carton Width(IN,inches) | 35.0000 |
| Dimensions|Cutout Depth Max(IN,inches) | 20.5625 |
| Dimensions|Cutout Depth Min(IN,inches) | 20.3750 |
| Dimensions|Cutout Depth(IN,inches) | 20.3750 |
| Dimensions|Cutout Width Max(IN,inches) | 29.5625 |
| Dimensions|Cutout Width Min(IN,inches) | 29.0625 |
| Dimensions|Cutout Width(IN,inches) | 29.0625 |
| Dimensions|Depth(IN,inches) | 21.7500 |
| Dimensions|Gross Weight(LB,pounds) | 52 |
| Dimensions|Height(IN,inches) | 5.2500 |
| Dimensions|Maximum Height(IN,inches) | 5.2500 |
| Dimensions|Net Weight(LB,pounds) | 47 |
| Dimensions|Width(IN,inches) | 30.8125 |
| Electrical|208V Compatible | Yes |
| Electrical|Amps | 40 |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 240 |
| Features|Automatic Pan Detection | No |
| Features|Digital Display | No |
| Features|Downdraft Vent | No |
| Features|Griddle | N/A |
| Features|Heating Element On Indicator Light | Yes |
| Features|Hot Surface Indicator Light | Yes |
| Features|Installs Over Built-In Oven | Yes |
| Features|LP Convertible | No |
| Features|Power Boost | No |
| Features|Power Outage Compatible | No |
