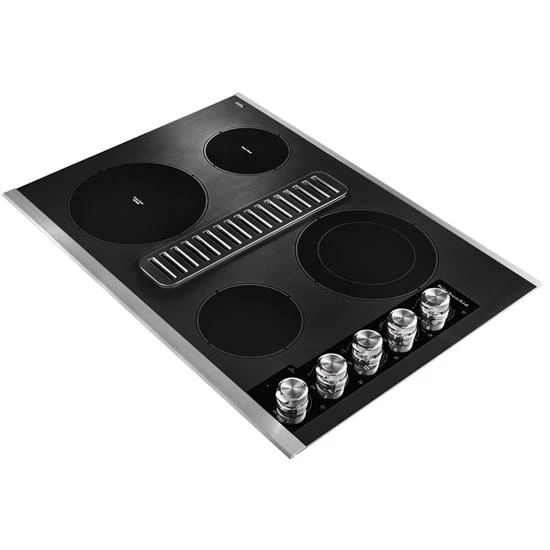

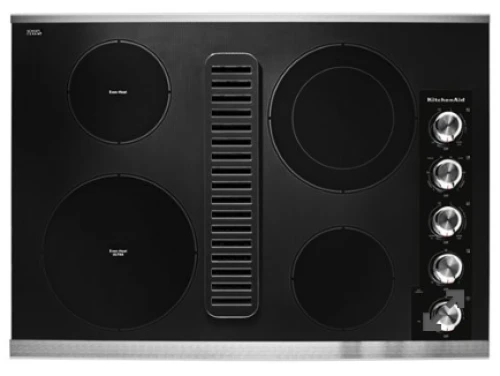

This 30” electric cooktop features Downdraft, an integrated ventilation system that doesn’t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high- and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.
Specification
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | No |
| Certifications|CEC Listed | Yes |
| Certifications|Energy Rating (kWh/year) | 258 |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Controls|Control Location | Right Side |
| Controls|Control Type | Knobs |
| Controls|Infinite Heat Controls | Yes |
| Controls|Knob Color | Stainless Steel |
| Controls|Knob Type | Metal |
| Cooktop Details|Cooktop Element Style | Radiant |
| Cooktop Details|Cooktop Surface Color | Black |
| Cooktop Details|Grate Details | Dishwasher Safe |
| Cooktop Details|Left Front Element-Burner Power | 3,200W |
| Cooktop Details|Left Front Element-Burner Size | 10in. |
| Cooktop Details|Left Front Element-Burner Type | Even-Heat™ Ultra |
| Cooktop Details|Left Rear Element-Burner Power | 1,300W |
| Cooktop Details|Left Rear Element-Burner Size | 6in. |
| Cooktop Details|Left Rear Element-Burner Type | Even-Heat™ |
| Cooktop Details|Number of Cooking Element-Burners | 4 |
| Cooktop Details|Number of Open Bays | N/A |
| Cooktop Details|Right Front Element-Burner Power | 1200W |
| Cooktop Details|Right Front Element-Burner Size | 6in. |
| Cooktop Details|Right Front Element-Burner Type | Single |
| Cooktop Details|Right Rear Element-Burner Power | 3000W/1400W |
| Cooktop Details|Right Rear Element-Burner Size | 9in./6in. |
| Cooktop Details|Right Rear Element-Burner Type | Dual-Stacked Burner |
| Description|Cooktop Type | Downdraft |
| Description|Fuel Type | Electric |
| Description|Size (in.) | 30 |
| Details|Cooktop Surface Material | Ceramic Glass |
| Carton Depth | 26 7/16 inch |
| Carton Height | 23 13/16 inch |
| Carton Width | 35 1/8 inch |
| Cutout Depth (in) | 21 1/8 inch |
| Cutout Width (in) | 28 3/4 inch |

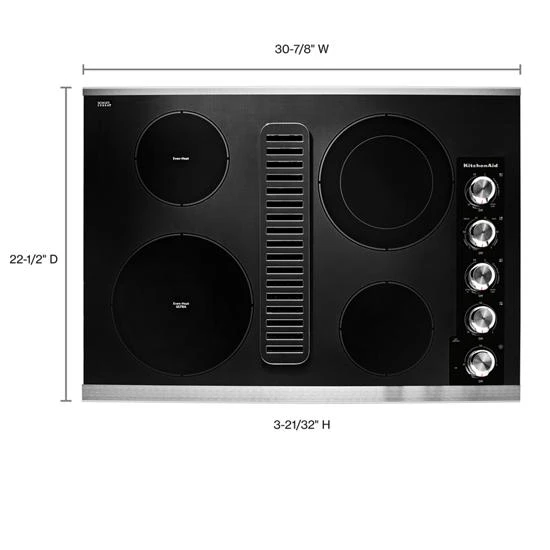

| Depth | 22 1/16 inch |
| Height | 3 5/8 inch |
| Width | 30 7/8 inch |
| Gross Weight | 62 inch |
| Maximum Height | 18 3/4 inch |
| Net Weight | 50.0 inch |
| Dimensions|Carton Depth(IN,inches) | 26.4375 |
| Dimensions|Carton Height(IN,inches) | 23.8125 |
| Dimensions|Carton Width(IN,inches) | 35.1250 |
| Dimensions|Cutout Depth(IN,inches) | 21.1250 |
| Dimensions|Cutout Width(IN,inches) | 28.7500 |
| Dimensions|Depth(IN,inches) | 22.0625 |
| Dimensions|Gross Weight(LB,pounds) | 62 |
| Dimensions|Height(IN,inches) | 3.6250 |
| Dimensions|Maximum Height(IN,inches) | 18.7500 |
| Dimensions|Net Weight(LB,pounds) | 50 |
| Dimensions|Width(IN,inches) | 30.8750 |
| Electrical|Amps | 40 |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 220 |
| Features|Automatic Pan Detection | No |
| Features|Digital Display | No |
| Features|Downdraft Vent | Yes |
| Features|Heating Element On Indicator Light | Yes |
| Features|Hot Surface Indicator Light | Yes |
| Features|Installs Over Built-In Oven | No |
| Features|LP Convertible | No |
| Features|Power Boost | No |
| Features|Power Outage Compatible | No |
| Features|Selection | DownDraft |
| Ventilation System|CFM Motor Class | 300 |
| Ventilation System|Number of Vent Speeds | 3 |
