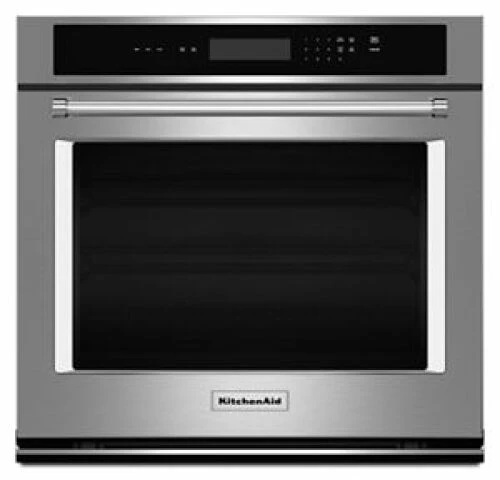

This 30” Single Wall Oven with Even-Heat™ Thermal Bake/Broil cycles the bake and broil elements to maintain the perfect temperature for baking, broiling and roasting. It comes with the FIT System Guarantee allowing you to matching the height of existing cabinets. And its bold design details are the perfect balance of elegance and functionality.
Specification
| Accessory Relationships | Yes |
| Certifications|ADA Compliant | No |
| Certifications|CUL | Yes |
| Certifications|Energy Rating (kWh/year) | 343 |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Configuration|Oven Configuration | Single Oven |

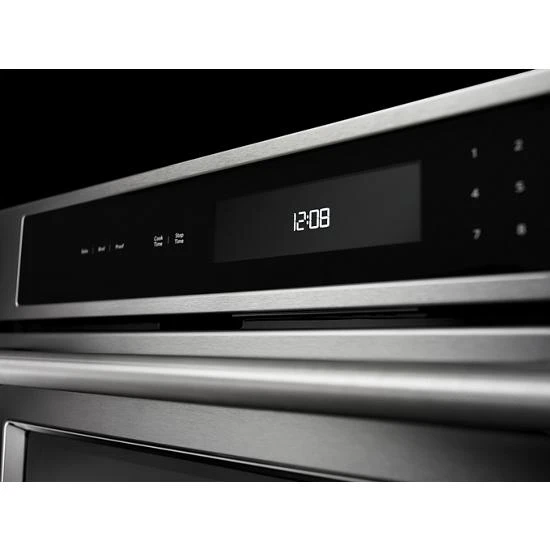

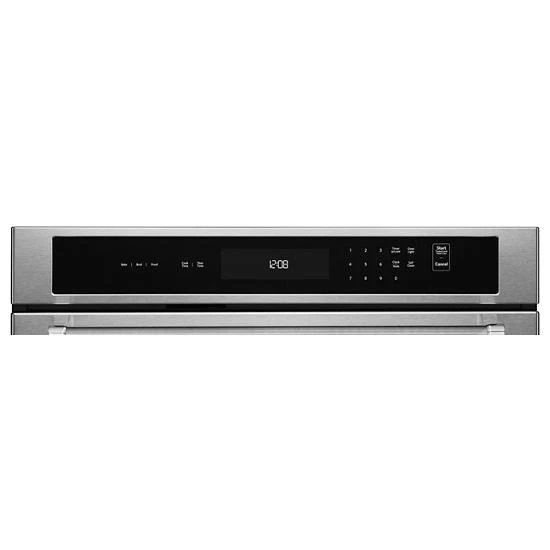

| Controls|Control Type | Glass Touch Digital Display |
| Controls|Display Color | White |
| Controls|Electronic Display Type | Digital |
| Description|Cooktop Combinations | KCES550,KCES556,KCES950,KCES956,KCGS350,KCGS356,KCGS550,KCGS556,KCGS950,KCGS956,KECC604,KECC607,KECC664,KECC667,KGCC506,KGCC566,KICU509,KICU569 |
| Description|Fuel Type | Electric |
| Description|Oven Type | Single |
| Description|Size (in.) | 30 |
| Details|Automatic Shut-Off | Yes |
| Details|Bake Element Power | 2,800 W |
| Details|Broiler Element Power | 4,000 W |
| Details|Broiler Location | Top of Oven |
| Details|Convection Element Type | None |
| Details|Door Broil Position | Closed |
| Details|Hidden Bake Element | Yes |
| Details|Interior Coating | Porcelain |
| Details|Interior Color | Blue |
| Details|Light Control | Oven Light Touch Pad |
| Details|Light Type | Halogen |
| Details|Number of Bake Elements | 1 |
| Details|Number of Broil Elements | 1 |
| Details|Number of Oven Lights | 2 |
| Details|Number of Oven Racks | 2 |
| Details|Number of Rack Guides | 6 |
| Details|Oven Capacity (cu.ft) | 5.0 |
| Details|Oven Cleaning Type | Adjustable Self Cleaning |
| Details|Oven Cooking System | Thermal |
| Details|Oven Interior Depth(IN,inches) | 19 |
| Details|Oven Interior Height(IN,inches) | 18 |
| Details|Oven Interior Width(IN,inches) | 25 |
| Details|Oven Rack 1 Type | Standard |
| Details|Oven Rack 2 Type | Standard |
| Details|Rack Guide Type | Molded |
| Details|Self-Cleaning Oven Racks | No |
| Details|Style | Wall Ovens |
| Capacity (Cu Ft) | 5.00 inch |
| Carton Depth | 30 13/16 inch |
| Carton Height | 30 3/4 inch |
| Carton Width | 34 13/16 inch |
| Cutout Depth (in) | 24 inch |
| Cutout Height (in) | 28 inch |
| Cutout Width (in) | 28 1/2 inch |

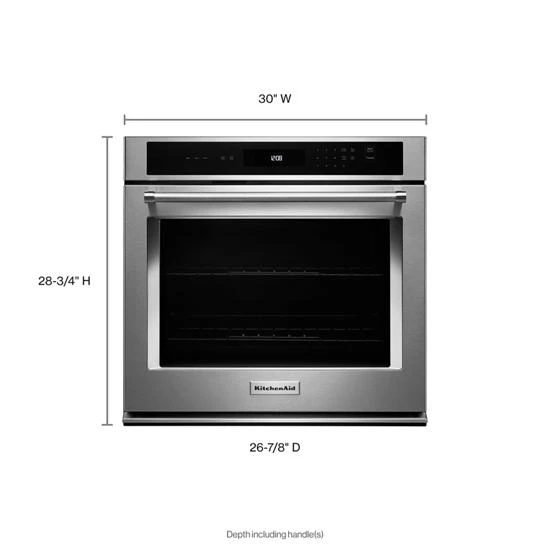

| Depth | 26 7/8 inch |
| Height | 28 3/4 inch |
| Width | 30 inch |
| Depth With Door Open 90 Degree | 46 3/4 inch |
| Gross Weight | 155 inch |
| Net Weight | 0.0 inch |
| Dimensions|Capacity(FT3,cubic feet) | 5.00 |
| Dimensions|Carton Depth(IN,inches) | 30 13/16 |
| Dimensions|Carton Height(IN,inches) | 30 3/4 |
| Dimensions|Carton Width(IN,inches) | 34 13/16 |
| Dimensions|Cutout Depth(IN,inches) | 24 |
| Dimensions|Cutout Height Min(IN,inches) | 28 |
| Dimensions|Cutout Height(IN,inches) | 28 |
| Dimensions|Cutout Width(IN,inches) | 28 1/2 |
| Dimensions|Depth With Door Open 90 Degree(IN,inches) | 46 3/4 |
| Dimensions|Depth(IN,inches) | 26 7/8 |
| Dimensions|Gross Weight(LB,pounds) | 155 |
| Dimensions|Height(IN,inches) | 28 3/4 |
| Dimensions|Width(IN,inches) | 30 |
| Electrical|Amps | 20 |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 240 |
| Even-Heat Thermal Bake/Broil | Even-Heat Thermal Bake/Broil |
| Even-Heat™ Preheat | Even-Heat™ Preheat |
| Exterior|Door Lock | Yes |
| Exterior|Door Removable | Yes |
| Exterior|Door Type | Metal & Glass |
| Exterior|Flush Installation Approved | Yes |
| Exterior|Handle Color | Stainless Steel |
| Exterior|Handle Material | Metal |
| Exterior|Installable Under Cooktop | Yes |
| Exterior|Oven Window Size | Extra Large |
| Features|Language Conversion | English/French |
| Features|LP Convertible | No |
| Features|Oven Selections | Clock,Control Lock,Delay Start,Proofing,Sabbath Mode,Star K,Time Bake,Timer |
| Features|Power On Indicator Light | Yes |
| Features|Temperature Conversion | Yes |
| FIT System | FIT System |
| Self Clean | Self Clean |
| Width Doors Open 90 Degrees | 46.750 |
