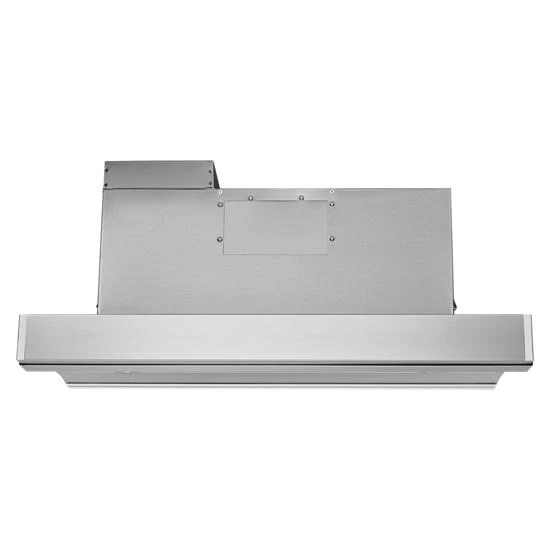

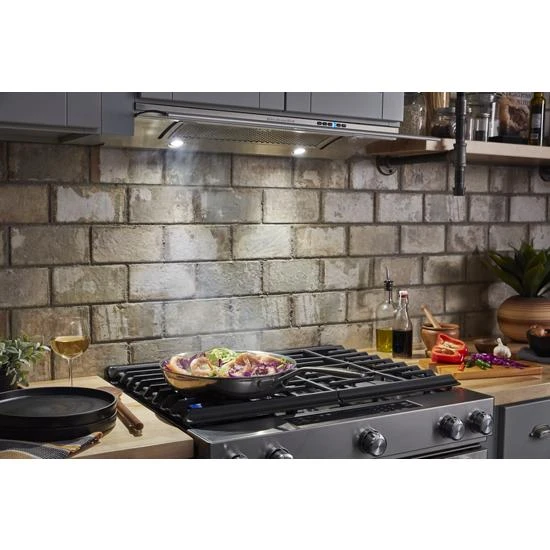

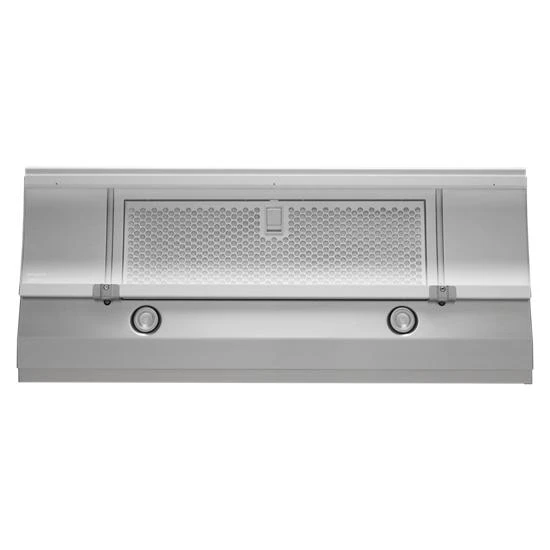

This slide-out ventilation system remains flush with surrounding cabinets for a sleek, integrated appearance when not in use. A stunning glass canopy extends from beneath the cabinetry when turned on. Electronic controls and LED lights make the vent system easy to use.
Specification
| Certifications|Energy Star® Qualified | No |
| Certifications|Kosher Consumer Friendly | No |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Controls|Control Location | Front |
| Controls|Control Type | Push Button |
| Description|Hood Type | Under-the-Cabinet |
| Description|Size (in.) | 30 |
| Details|Style | Hoods |
| Carton Depth | 17 1/4 inch |
| Carton Height | 15 1/8 inch |
| Carton Width | 39 3/8 inch |
| Cutout Depth (in) | 9 inch |
| Cutout Height (in) | 15 inch |
| Cutout Width (in) | 21 inch |
| Depth | 11 inch |
| Width | 30 inch |
| Gross Weight | 39 inch |
| Maximum Height | 32 inch |
| Net Weight | 29.2 inch |
| Dimensions|Canopy Height (IN,inches) | 13.1 |
| Dimensions|Carton Depth(IN,inches) | 17 1/4 |
| Dimensions|Carton Height(IN,inches) | 15 1/8 |
| Dimensions|Carton Width(IN,inches) | 39 3/8 |
| Dimensions|Cutout Depth(IN,inches) | 9 |
| Dimensions|Cutout Height(IN,inches) | 15 |
| Dimensions|Cutout Width(IN,inches) | 30 |
| Dimensions|Depth(IN,inches) | 11 |
| Dimensions|Gross Weight(LB,pounds) | 39 |
| Dimensions|Maximum Height(IN,inches) | 32 |
| Dimensions|Net Weight(LB,pounds) | 29 |
| Dimensions|Width(IN,inches) | 30 |
| Electrical|Amps | 2 |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 120 |
| Electrical|Watts | 236 |
| Features|Damper Included | Yes |
| Features|Lighting Control Type | Push Button |
| Features|Night Light | No |
| Features|Number of Task Light Settings | 1 |
| Features|Task Light Type | LED |
| Features|Task Lighting | Yes |
| Home Delivery | Yes |
| Ventilation System| HVI (CFM HS Horizontal) | N/A |
| Ventilation System| HVI (CFM HS Vertical) | 330 |
| Ventilation System| HVI (Sones HS Horizontal) | N/A |
| Ventilation System| HVI (Sones HS Vertical) | 4 |
| Ventilation System|Auto Function | Auto On |
| Ventilation System|Blower Type | Centrifugal |
| Ventilation System|CFM Motor Class | 330 |
| Ventilation System|Duct Direction | Vertical |
| Ventilation System|Duct Outlet Size (in.) | 6 |
| Ventilation System|Duct Type | Round |
| Ventilation System|Exhaust Vent Location | Top |
| Ventilation System|Number of Speeds | 4 |
| Ventilation System|Sound Max Speed (dB(A) | 61.1 |
| Ventilation System|Sound Max Speed (Sones) | 4.0 |
| Ventilation System|Sound Min Speed (dB(A) | 40.2 |
| Ventilation System|Vent Fan Location | Back |
| Ventilation System|Vent Material | Plastic |
| Ventilation System|Venting | Exterior or Recirculating |
| Will Call | Yes |
