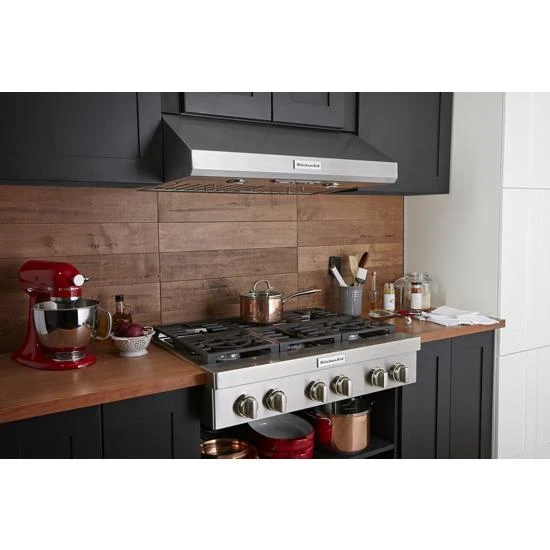

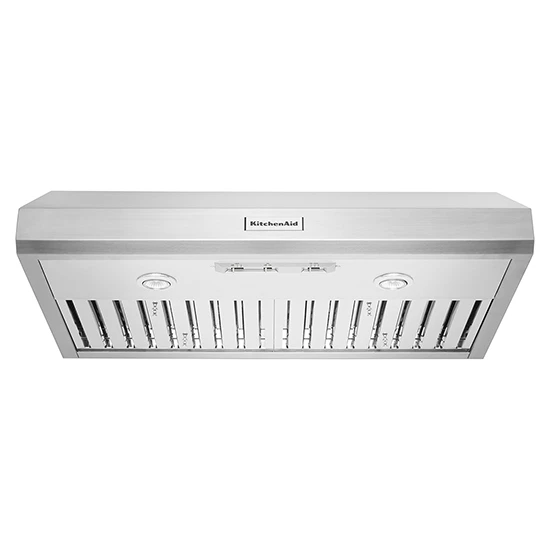

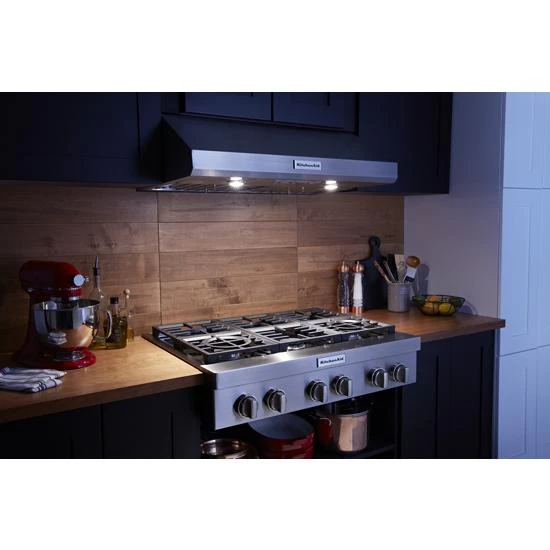

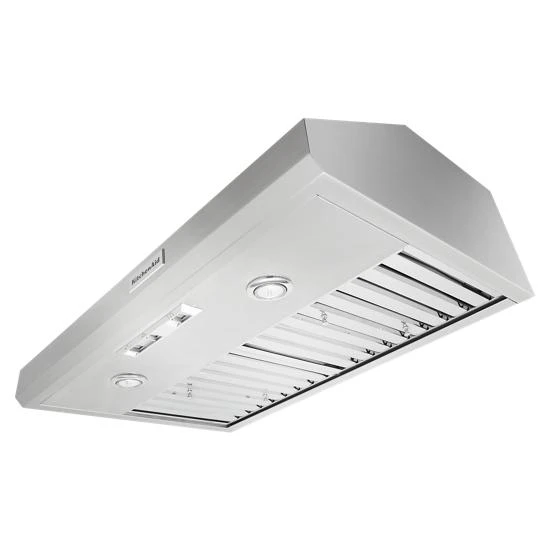

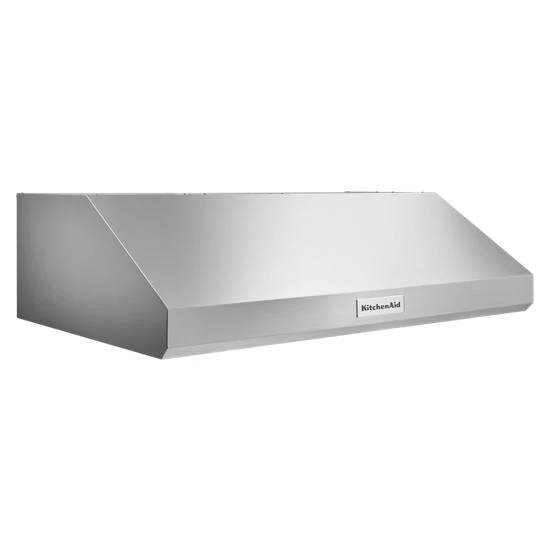

Designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops, this 36-inch 585 CFM motor class under-cabinet range hood system equips your kitchen with powerful ventilation. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Three fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Specification
| Accessory Relationships | Yes |
| Certifications|Energy Star® Qualified | No |
| Certifications|Kosher Consumer Friendly | No |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Controls|Control Location | Hidden |
| Controls|Control Type | Slide Controls |
| Description|Hood Type | Under Cabinet |
| Description|Size (in.) | 36 |
| Carton Depth | 15 inch |
| Carton Height | 39 1/2 inch |
| Carton Width | 26 15/16 inch |
| Cutout Depth (in) | 13 inch |
| Cutout Height (in) | 10 inch |
| Cutout Width (in) | 30 inch |
| Depth | 23 inch |
| Width | 36 inch |
| Gross Weight | 68 inch |
| Maximum Height | 36 inch |
| Minimum Height | 24 inch |
| Net Weight | 45.4 inch |
| Dimensions|Canopy Height (IN,inches) | 10 |
| Dimensions|Cutout Depth(IN,inches) | 13 |
| Dimensions|Cutout Height(IN,inches) | 10 |
| Dimensions|Cutout Width(IN,inches) | 30 |
| Dimensions|Depth(IN,inches) | 23 |
| Dimensions|Gross Weight(LB,pounds) | 68 |
| Dimensions|Maximum Height(IN,inches) | 36 |
| Dimensions|Net Weight(LB,pounds) | 45 |
| Dimensions|Width(IN,inches) | 36 |
| Electrical|Amps | 3.75 |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 120 |
| Electrical|Watts | 450 |
| EndecaProps|ProductOutletCategories | Cooking |
| Features|Lighting Control Type | Slider |
| Features|Night Light | No |
| Features|Number of Task Light Settings | 1 |
| Features|Task Light Type | LED |
| Features|Task Lighting | Yes |
| Home Delivery | Yes |
| Refinement|Style | Hoods |
| Ventilation System| HVI (CFM HS Horizontal) | 430 |
| Ventilation System| HVI (CFM HS Vertical) | 440 |
| Ventilation System| HVI (Sones HS Horizontal) | 12.5 |
| Ventilation System| HVI (Sones HS Vertical) | 12 |
| Ventilation System|Auto Function | Auto On |
| Ventilation System|Blower Type | Centrifugal |
| Ventilation System|Duct Direction | Vertical or Horizontal |
| Ventilation System|Duct Length | 13.000 |
| Ventilation System|Duct Outlet Size (in.) | 3 1/4 x 10 |
| Ventilation System|Duct Type | Rectangular |
| Ventilation System|Exhaust Vent Location | Rear,Top |
| Ventilation System|Filters | Grease Filters |
| Ventilation System|Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 585 |
| Ventilation System|Number of Speeds | 3 |
| Ventilation System|Sound Max Speed (Sones) | 12.0 |
| Ventilation System|Vent Fan Location | Side |
| Ventilation System|Vent Material | Aluminum |
| Ventilation System|Venting | Exterior |
| Will Call | Yes |
