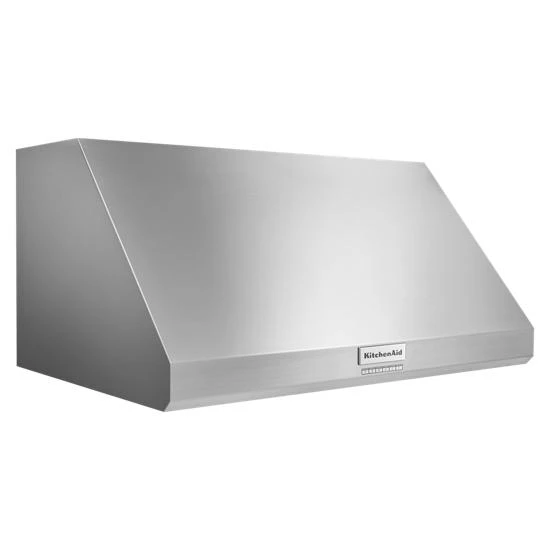

Equip your kitchen with a powerful 36-inch wall-mount canopy range hood designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners at the same time. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Specification
| Accessory Relationships | Yes |
| Certifications|Energy Star® Qualified | No |
| Certifications|Kosher Consumer Friendly | No |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Controls|Control Location | Front |
| Controls|Control Type | Push Button |
| Description|Hood Type | Wall-Mount Canopy |
| Description|Size (in.) | 36 |
| Carton Depth | 30 inch |
| Carton Height | 24 inch |
| Carton Width | 41 inch |
| Cutout Height (in) | 18 inch |
| Cutout Width (in) | 36 inch |
| Depth | 25 inch |
| Height | 36 inch |
| Width | 36 inch |
| Gross Weight | 37 inch |
| Net Weight | 28.0 inch |
| Dimensions|Canopy Height (IN,inches) | 12.00000 |
| Dimensions|Carton Depth(IN,inches) | 30.0000 |
| Dimensions|Carton Height(IN,inches) | 24.0000 |
| Dimensions|Carton Width(IN,inches) | 41.0000 |
| Dimensions|Cutout Depth(IN,inches) | 18.0000 |
| Dimensions|Cutout Height Min(IN,inches) | 18.0000 |
| Dimensions|Cutout Width(IN,inches) | 36.0000 |
| Dimensions|Depth(IN,inches) | 25.0000 |
| Dimensions|Gross Weight(LB,pounds) | 37 |
| Dimensions|Height(IN,inches) | 18.0000 |
| Dimensions|Net Weight(LB,pounds) | 28 |
| Dimensions|Width(IN,inches) | 36.0000 |
| Electrical|Amps | 3.86 (585 CFM)/7.6 (1170 CFM) |
| Electrical|Hz | 60 |
| Electrical|Power Cord Included | No |
| Electrical|Volts | 120 |
| Features|BTU Threshold | 90K/105K |
| Features|Damper Included | Yes |
| Features|Lighting Control Type | Push Button |
| Features|Night Light | Yes |
| Features|Night Light Type | LED |
| Features|Number of Night Light Settings | 1 |
| Features|Number of Task Light Settings | 1 |
| Features|Task Light Type | LED |
| Features|Task Lighting | Yes |
| Ventilation System| HVI (CFM HS Horizontal) | 480/960 |
| Ventilation System| HVI (CFM HS Vertical) | 520/970 |
| Ventilation System| HVI (Sones HS Horizontal) | 10.5/12.5 |
| Ventilation System| HVI (Sones HS Vertical) | 11/12.5 |
| Ventilation System|Auto Function | Auto On |
| Ventilation System|Blower Motor | Blower Motor to be Purchased Separately |
| Ventilation System|Blower Type | Centrifugal |
| Ventilation System|Duct Direction | Vertical or Horizontal |
| Ventilation System|Duct Length | 13.000 |
| Ventilation System|Duct Outlet Size (in.) | 10 |
| Ventilation System|Duct Type | Round |
| Ventilation System|Exhaust Vent Location | Top |

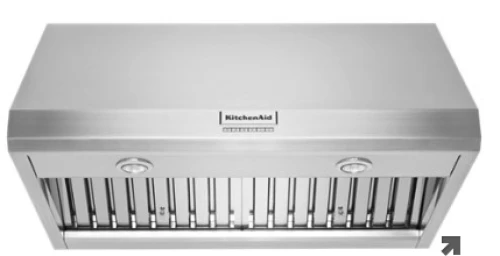

| Ventilation System|Filters | Removable Stainless Steel Baffle Filters |
| Ventilation System|Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 1170 |
| Ventilation System|Number of Vent Speeds | 4 |
| Ventilation System|Sound Max Speed (dB(A) | 73.6 |
| Ventilation System|Sound Max Speed (Sones) | 12.5 |
| Ventilation System|Sound Min Speed (dB(A) | 70.1 |
| Ventilation System|Sound Min Speed (Sones) | 2.50 |
| Ventilation System|Vent Fan Location | Side |
| Ventilation System|Vent Material | Aluminum |
| Ventilation System|Venting | Exterior |
