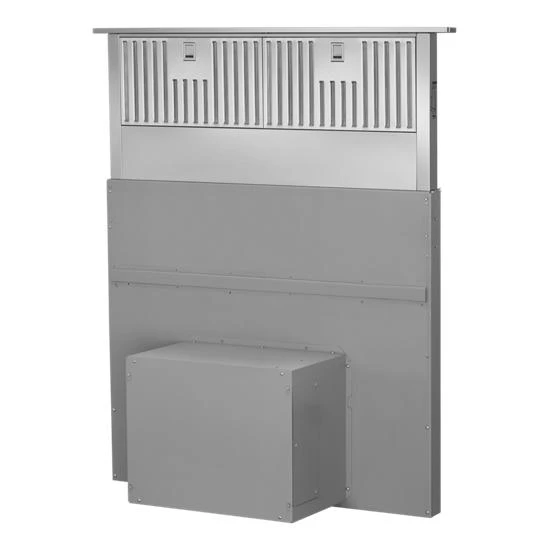

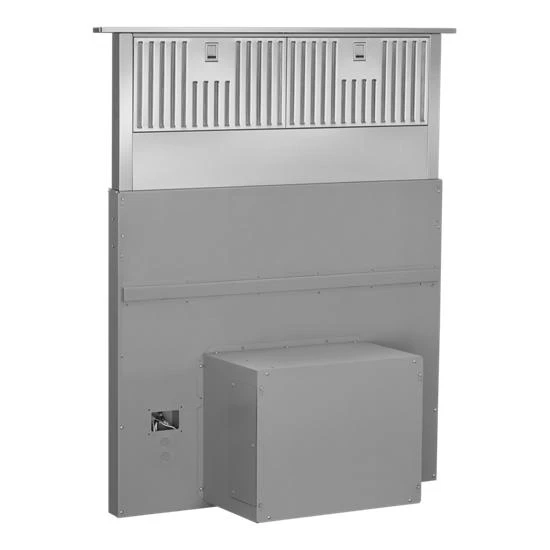

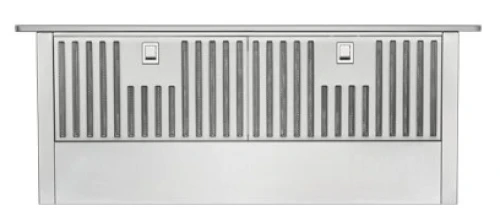

This 36-inch retractable downdraft ventilation system rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class* ventilation system has the power to provide effective venting for most cooktops or ranges. The system is reversible to help fit in the cabinet space under the vent. *Performance varies based on installation. Resources available at AHAM.org
Specification
| Accessory Relationships | Yes |
| Auto Turn On | Auto Turn On |
| Certifications|Prop 65 | Standard |
| Certifications|UL | Yes |
| Controls|Control Location | Hidden |
| Controls|Control Type | Push Button |
| Cook Up The Savings | Cook Up The Savings |
| Description|Hood Type | Retractable Downdraft |
| Description|Size (in.) | 36 |
| Details|Material | Stainless Steel |
| Details|Style | Hoods |
| Carton Depth | 39 1/2 inch |
| Carton Height | 21 inch |
| Carton Width | 35 inch |
| Depth | 12 1/8 inch |
| Height | 28 1/2 inch |
| Width | 33 inch |
| Gross Weight | 100 inch |
| Dimensions|Carton Depth(IN,inches) | 39.5000 |
| Dimensions|Carton Height(IN,inches) | 21.0000 |
| Dimensions|Carton Width(IN,inches) | 35.0000 |
| Dimensions|Depth(IN,inches) | 12.1250 |
| Dimensions|Gross Weight(LB,pounds) | 100 |
| Dimensions|Height(IN,inches) | 28.5000 |
| Dimensions|Width(IN,inches) | 33.0000 |
| Electrical|Amps | 15 |
| Electrical|Hz | 60 |
| Electrical|Volts | 120 |
| Series | Specialty Series |
| Ventilation System|Blower Type | Centrifugal |
| Ventilation System|CFM Motor Class | 585 |
| Ventilation System|Duct Direction | Vertical |
| Ventilation System|Duct Outlet Size (in.) | 6 |
| Ventilation System|Duct Type | Round |
| Ventilation System|Filters | Grease Filters |
| Ventilation System|Number of Vent Speeds | 10 |
| Ventilation System|Sound Max Speed (Sones) | 7.9 |
| Ventilation System|Venting | Exterior |
